HelioPulse3K

Home >>  HelioPulse3k

RELIABLE.  PRECISE.  INDIGENOUS.

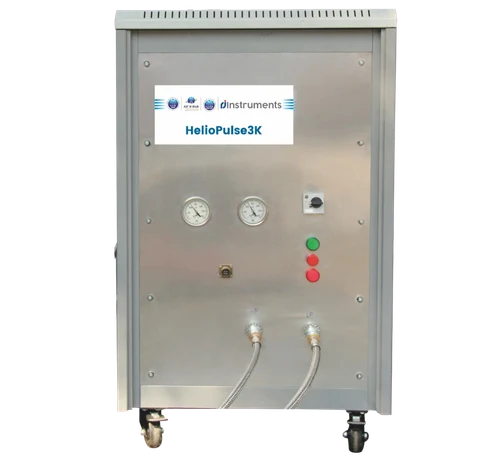

HelioPulse3K

A helium compressor is the powerhouse behind closed-cycle cryocoolers, delivering the high-purity compressed helium that drives closed-cycle cryocoolers. The HelioPulse3K is precision-engineered to unlock the full potential of your cryocooler, ensuring seamless synchronization, peak performance, and long-term reliability.

Engineered in India

Reliable Performance

Easy Maintenance

Locally Available Spare Parts

Enquire Now
Download Brochure
Specifications for Helium Compressor:

Model:

HelioPulse3K

Technology:

Scroll

Power#:

2.4 kW, 50Hz

Electrical rating:

415V,3Ph, 50Hz

Cooling water requirement:

@ 7 LPM @ 11 ℃

Weight:

125 kg

Dimensions:

Approx. 0.6x 0.6 x 0.6 m

Flexible pipes:

2 Nos. fitted with Helium leakproof Aeroquip couplings

Helium Pressure (at start):

HP 245 ± 10 psig
LP 50 ± 5 psig

Operating temp:

Operating temp:

Noise:

65 dBA at 1 meter

# With our cryocooler at an operating temperature of 30 K.

Salient Features:

  • Engineered and manufactured by Indian innovations.
  • Made from the components readily available in the market.
  • Spare parts are locally available.
  • This helium compressor is compatible with GM refrigerators of similar capacities, meeting the requirements of even the most demanding applications.
  • Most of the maintenance can be performed in the field. However, the mean time between service intervals is 10,000 hours.

Accessories for Cryogenic Applications

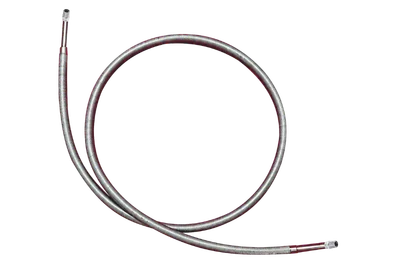

Stainless steel braided corrugated hose pipes

Stainless steel braided corrugated hose pipes

  • Suitable for Helium handling
  • Tested with Helium at 25 bar or as per requirement along with test certificate
  • For required length from 1m to any length
  • Available with / without coupling

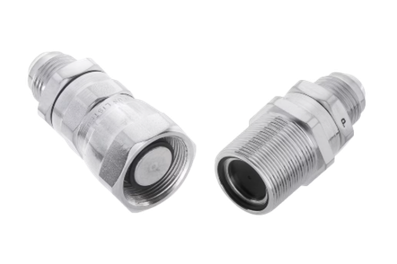

Parker make Aeroquip Self sealing couplings of 5400 series

Parker make Aeroquip Self sealing couplings of 5400 series

  • Self sealing
  • Zero leakage
  • Suitable for Helium Gas

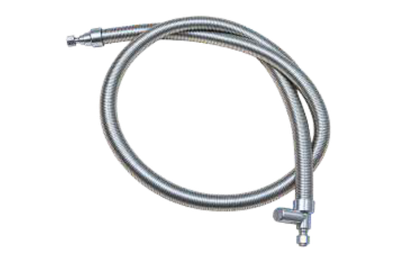

Vacuum Jacketed Transfer Hose for Liquid Nitrogen

Vacuum Jacketed Transfer Hose for Liquid Nitrogen

  • Outer surface is safe to touch
  • Reduced cryogen losses
  • 1/4" - 2" inner hose
  • 150 psi standard design with higher pressures available
  • Test Certificates for Jacket and Pipe shall be provided

Need more information?

Our team is here to help you with the right solution for your application.
